Nüral®

Fitted with Goetze® Rings

Outstanding Piston Technology

Nüral® has developed unique OE piston technologies that can better withstand the harsh conditions of the combustion chamber to promote engine efficiency and lower emissions.  Nüral products gives engine designers the freedom to innovate without compromise. Nüral technology has been a key enabler to the advancement of direct-injection diesel engine technology, with elastic, stable and lightweight pistons that can effectively reduce friction and resist seizure. OE heritage and award-winning piston technology combine to make Nüral products the number one choice for engine rebuilders.

nural-ecotough-piston-1200w



Innovations

Nüral products allow engine designers to innovate without compromise. The following product innovations were honored with prestigious PACE awards:

  • DuraBowl® piston utilizing a high strength re-melted combustion bowl rim and increases the piston life by several times under severe operating conditions

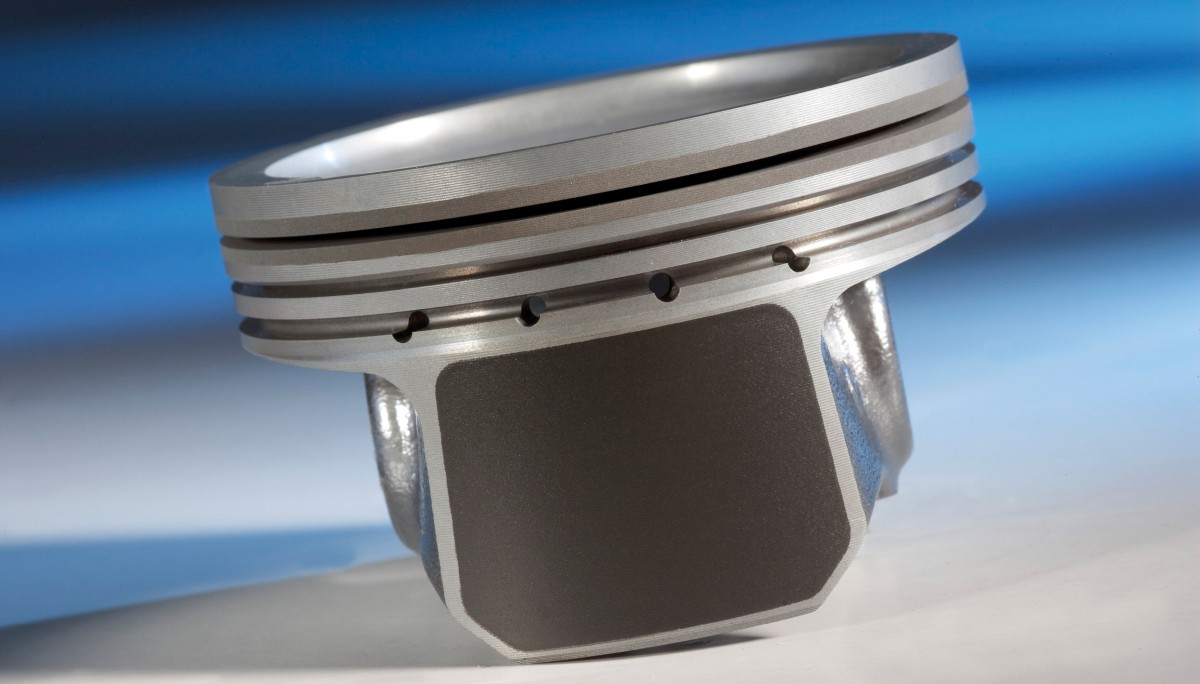

  • Ecotough® NG piston coating is capable of reducing friction by up to 15% and piston skirt wear by up to 40%
  • Monosteel® piston - an industry standard for heavy-duty diesel vehicle applications
  • Duraform G91® is a special piston alloy with increased durability & higher fatigue strength in modern, highly loaded, diesel engines
nural-petrol-piston
Goetze OE quality





Nural OE quality

Tenneco (Nüral’s parent company), is a Global OE piston manufacturer, producing and delivering to OEM’s, the OE Spare market and the independent Aftermarket. We deliver Nüralparts to the world’s leading manufacturers for both light and commercial vehicles as well as for industrial applications.

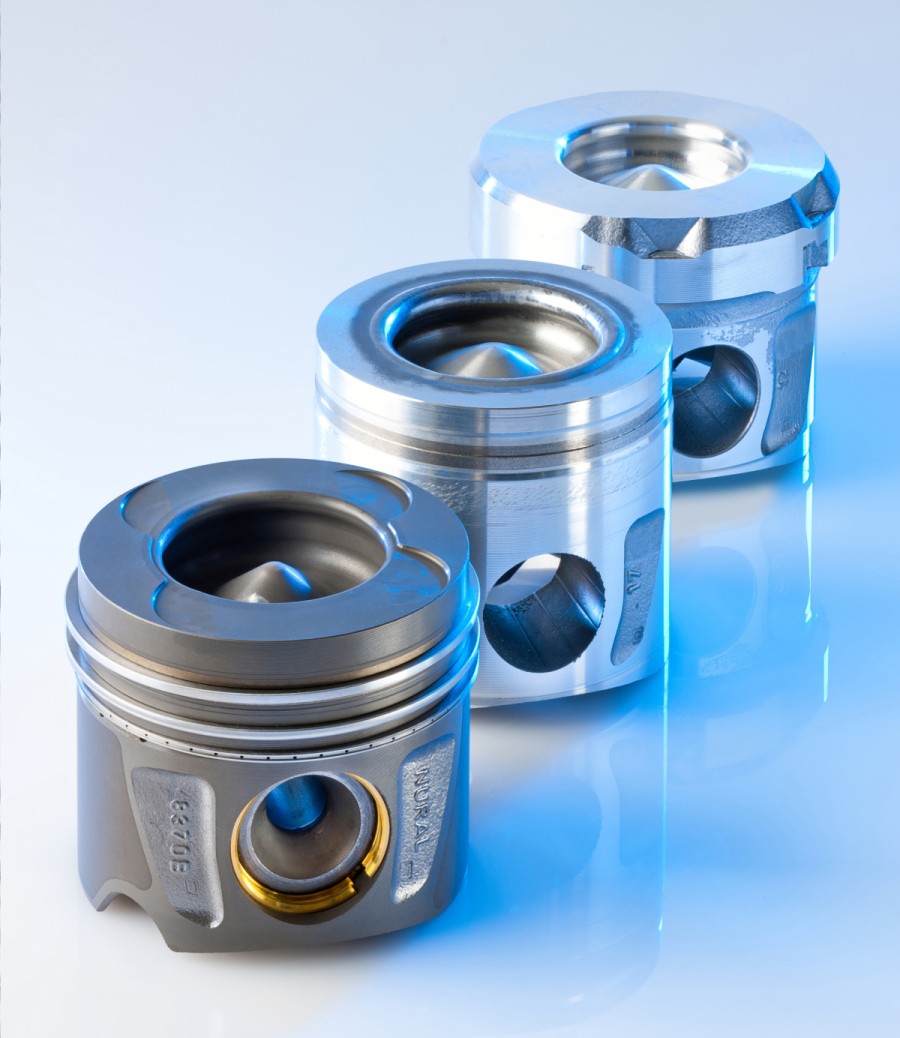

Nüral products

EcoTough® NG petrol engine pistons
Elastoval II® petrol engine pistons
Elastothermic® petrol engine pistons
DuraBowl® diesel engine pistons
DuraForm-G91 diesel engine pistons



The piston is part of a system that wouldn’t work effectively without equal innovation in the technology used in related components, particularly the piston rings. These must provide an exceptional seal, they must be resistant to high temperatures, high pressures and very high forces while minimizing friction and wear. They must last longer than ever before despite working with less lubrication. Even the fuels, traditionally an important source of lubrication especially in diesel engines, are becoming less lubricious as Sulphur contents were reduced.

The pistons are the heart of the engine, where these increasingly tough conditions are most demanding. Pistons must endure the most aggressive forces, amongst the highest temperatures and the most dramatic thermal cycles of any engine component. They must be light to reduce the loads and losses due to their reciprocating movement and to contribute to overall vehicle weight reduction. Naturally, there can be no compromise on durability or reliability, which must also continue to advance.

nural-piston-ecotough

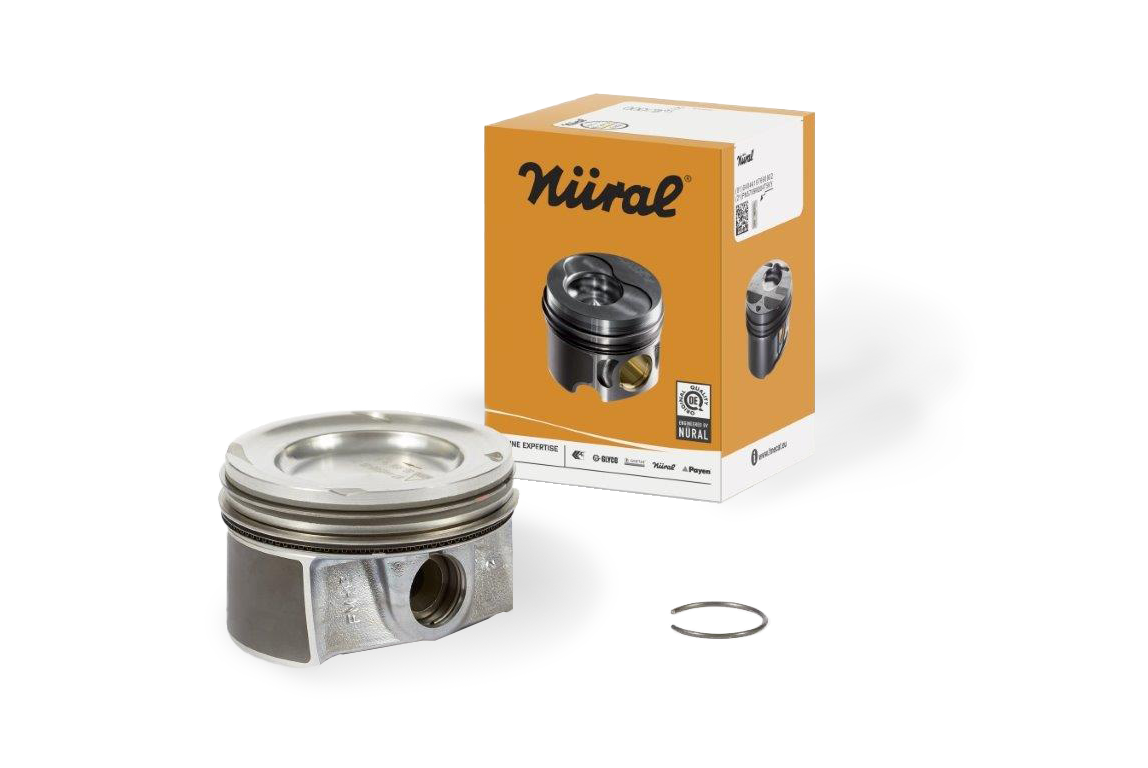

Petrol Engine Pistons

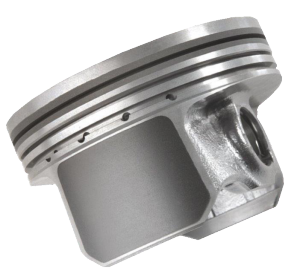

EcoTough NG®

Reducing friction and improving the wear resistance of pistons is particularly important in highly boosted petrol engines. By using a coating comprised of solid lubricants, such as graphite and molybdenum disulphide with carbon fibre, Tenneco’s new Nüral EcoTough NG® pistons have demonstrated a reduction in friction of up to 15% combined with a substantial reduction in wear.

EcoTough® coating further reduces engine friction, wear and noise while dealing with the increasingly challenging loads and temperatures in the latest downsized, turbocharged engines. The coating is applied in a thickness of 15 microns and reduces skirt wear by up to 40% when compared to the market standard. It offers improved fatigue strength in the harshest conditions thanks to its metal oxide reinforcement. When compared to traditional coatings, it reduces piston friction, increasing both efficiency & fuel economy.



EcoTough Key Features & Benefits

  • Tenneco OE technology
  • Solid lubricant coating containing carbon fibre and graphite
  • Up to 15% piston friction loss reduction
  • 0.2 – 0.8% advantage in fuel consumption
  • Up to 40% less wear
  • Reduction in CO2 emissions





Elastoval®

Another substantial challenge is ensuring a good fit within the cylinder at all loads and temperatures. The oval skirt shape of Tenneco’s Nüral Elastoval® piston ensures optimum compliance of the piston skirt, allowing it to adapt as the load changes. Coupled with high geometric stability and minimized piston weight, this provides Elastoval® pistons with increased durability, superior anti-seizure properties, and reduced friction. Elastoval II ultra lightweight aluminum pistons allow a weight reduction of up to 15% in high power petrol engines





Elastothermic®

Gallery-cooled petrol pistons enable downsized engines to run at higher power levels and compression ratios with outstanding durability and lower parameters of noise, vibration and NVH.





nural-durabowl1

Diesel Engine Pistons

Pistons are some of the hardest working components inside a diesel engine. Diesel engines are high compression, high heat engines that demand a lot from their pistons.

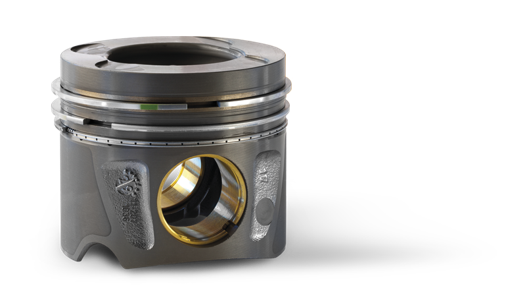

DuraBowl®

In very high performance, heavily downsized diesel engines, high-pressure turbocharging and new fueling strategies are pushing piston temperatures beyond 400°C and cylinder pressures to over 200 bar for cars and beyond 250 bar for heavy duty trucks. Tenneco‘s engineers have identified that failures of conventional piston bowls in this highly aggressive environment can be traced to the presence of silicon particles in the aluminum. By re-melting the alloy around the rim of the bowl, the silicon particles can be reduced to only one tenth of their previous size, substantially increasing the strength and durability of the piston bowl rim. The award winning DuraBowl® piston uses this technique to increase service life between four and seven times compared with a conventional cast piston, allowing engine designers to continue to drive up efficiency to reduce fuel consumption and CO2 emissions.



DuraBowl Key Features & Benefits

  • Tenneco OE technology
  • Remelted combustion bowl strengthening design
  • Endures temperatures > 400°C and cylinder pressure between 200 – 250 bar
  • Increases piston life by several times under severe operating conditions





Monosteel®

The award-winning Monosteel® piston an industry standard for heavy-duty diesel vehicle applications. Magnum Monosteel®, takes another leap forward by reducing piston mass by up to seven percent and introducing a unique “double band” piston skirt that reduces friction by up to 17percent.

Cooling gallery:  Extracting more performance from smaller engines creates a dramatic increase in combustion temperatures. Nüral® pistons are designed in conjunction with the leading European vehicle and engine manufacturers and include optimised cooling gallery positions, making them ideal for high specific output turbo-charged diesel engines.



Monosteel® Key Features & Benefits

  • Patented German Monosteel® piston technology design
  • Double sided friction welded from two steel forgings to create a large, high cooling gallery for maximum efficiency and rigidity which results in reduced cooling oil and improved fuel consumption.
  • Monosteel pistons are capable of withstanding firing pressures up to 300 bars, providing superior strength and durability for heavy-duty engine applications





DuraForm-G91®

The Award winning DuraForm-G91 piston material enables the design of double life time pistons in modern, highly loaded, diesel engines. The increased strength of the material also supports higher mechanical loads, allowing engines to operate at higher specific power and more efficiently to achieve demanding emission standards.



DuraForm-G91® Key Features & Benefits

Double piston life time due to:

  • Higher fatigue strength at higher temperatures
  • Smaller grain size
  • Reduced bowl rim wear





Nüral Quick look benefits

Benefit 1: Market leading coverage

  • Over 1.400 pistons & kit sets covering over 7.000 Tecdoc defined engines*
  • Leading light & commercial car parc coverage

Benefit 2: Leading piston technology

  • Unique OE technologies to improve durability & reduce emissions
  • No. 1 OEM piston supplier to high-performance engines
  • Fitted with Goetze piston rings

Benefit 3: German OE supplier

  • Engineered in Nuremberg, Germany
  • OE heritage together with rings & liners



History

A small plant for aluminium injection molding, a completely new technology in Germany, is founded with a workforce of 35 people in 1924 as Aluminium Spritzgusswerk GmbH in Nuremberg, Germany. In 1928 the company was acquired by Canadian company Aluminium Limited "ALCAN". The company has grown to become one of the world’s largest aluminium manufacturers. In 1999 Alcan Aluminium Ltd.'s German piston unit in Nuremberg was acquired by Federal-Mogul Corporation, now Tenneco Inc. The first Monsteel piston production started in 2006. In 2024 Nüral will celebrate its 100th birthday.



nural-piston-range-900w









Videos



Downloads



Catalogue - Leaflets



Nural Cylinder Components Catalogue


Nural Cylinder Components Catalogue

Download PDF

Cylinder Components Catalogue Amendments


Cylinder Components Catalogue Amendments

Download PDF

A New Technology Comes to Light


A New Technology Comes to Light

Download PDF



DuraBowl Tech Leaflet


DuraBowl Tech Leaflet

Download PDF



OE Quality For the OM470 Engine


OE Quality For the OM470 Engine

Download PDF

Higher Performance 'Duraform-G91' Piston Alloy


Higher Performance 'Duraform-G91' Piston Alloy

Download PDF

Ford Panther 2.0 Ecoblue


Ford Panther 2.0 Ecoblue

Download PDF



Scan To Get More


Scan To Get More

Download PDF



Trouble Tracer






Petrol Piston PRMNU2301


Petrol Piston PRMNU2301

Download PDF

nural-poster-ttc-diesel-piston-prmnu2201-en


Diesel Piston PRMNU2201

Download PDF

Precision Made Simple

SEB – Service Engineering Bulletins


Honing Helper


Honing Helper

Download PDF

Locating and Curing Detonation and Pre Ignition Problems


Locating and Curing Detonation and Pre Ignition Problems

Download PDF

Erosion of Piston at Outer Ends of Piston Pin Hole


Erosion of Piston at Outer Ends of Piston Pin Hole

Download PDF



Piston Ring Land Fractures


Piston Ring Land Fractures

Download PDF



Piston Pins - Press Fit in Con-Rod - Fitting Precautions


Piston Pins - Press Fit in Con-Rod - Fitting Precautions

Download PDF

Piston Pin circlip failures


Piston Pin circlip failures

Download PDF

Piston Crown Contact


Piston Crown Contact

Download PDF



Taper Sided (Keystone Wedge) Piston Grooves


Taper Sided (Keystone Wedge) Piston Grooves

Download PDF



Diesel Engine Oil Consumption


Diesel Engine Oil Consumption

Download PDF

Chromium Plated Cylinder Bores


Chromium Plated Cylinder Bores

Download PDF

Diesel Piston Crown Erosion


Diesel Piston Crown Erosion

Download PDF



Oil Ring Installation


Oil Ring Installation

Download PDF



Anti Polish Fire Ring


Anti Polish Fire Ring

Download PDF

VW 2.5 TDI Pistons and Repair Sleeves


VW 2.5 TDI Pistons and Repair Sleeves

Download PDF

"Fixing Marks" on Phosphate Coated Pistons


"Fixing Marks" on Phosphate Coated Pistons

Download PDF



Precision Made Simple

*Based on internal analysis of EU vehicle parc data Q4 2023
