Glyco®

One of The World’s Most Trusted Bearings

Glyco® delivers highly respected products and an unrivalled range of engine bearings and materials to the automotive market.  Engineered in Germany and sold in 10 million automotive, maritime and stationary engines and agricultural and construction equipment every year.  Glyco brings its OE-proven technologies to the aftermarket, with designs optimized for each application.

For over 125 years, Glyco is a global leader in engine bearing technology, offering an extensive range of bearings and materials, backed by leading German technology, product longevity and reliability, and strong customer support.

Tenneco (Glyco’s parent company), is a Global OE engine bearings, bushes and thrust washers manufacturer, producing and delivering to OEM’s, the OE Spares market and the Aftermarket. We deliver engine parts to the majority of European car manufacturers for both Light Vehicles as Commercial Vehicles.

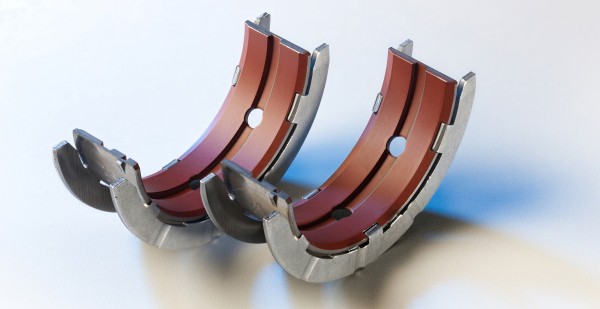

Glyco® IROX® & IROX2®

The Glyco® IROX® & IROX2® bearing overlay can help increase the life of crankshafts and bearing shells by more than five times, in the most demanding applications and drive cycles such as start-stop. The Glyco® IROX® & IROX2® technology is so effective that it is possible to use cost reducing aluminium based linings instead of the more expensive copper.

Unique to the Glyco brand

• Numerous patents including the Physical Vapor Deposition (PVD) process for manufacturing Glyco sputter bearings®
• Every year, Glyco's engine bearings and bushes are used in millions of vehicles as OE components
• Applications range from small electric engines, to engines for heavy-duty commercial vehicles, agricultural and marine, to stationary engines
• One of the world's leading bearing plant with one of the largest and state of the art R&D centres for bearings technology worldwide.

Engine Bearings

In an internal combustion engine, there are certain areas where components move against each other. In these areas friction can lead to wear and damage of the components involved. To avoid these effects bearings are employed. A bearing has the job of transmitting power, of reducing friction and of preventing wear on expensive engine parts. On top of this, bearings should be both economical and quick and easy to replace in case of damage.

The most important engine bearings are for the crankshaft and camshaft. The crankshaft is held in the crankcase by the main bearings and the connecting rod bearings link the crankshaft to the piston via the connecting rod. Engineers distinguish between different kinds of bearings in various ways:

1. Based on the nature of the power transmitted, i.e. radial and axial bearings.
2. Based on design.
3. Also between anti-friction bearings (e.g. ball or roller bearings) versus sliding bearings.

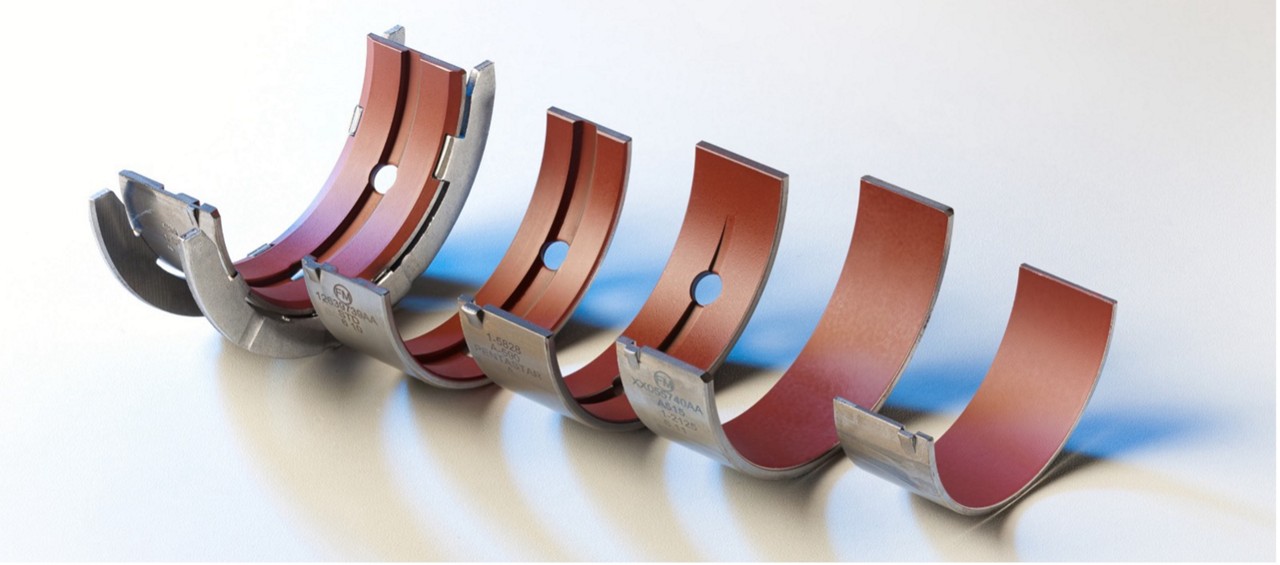

Conrod Bearings & Main Bearings

Glyco IROX® & IROX2® polymer-coated bearing shells address the lubrication challenges associated with heavily boosted engines and with the frequent engine restarts, typical for hybrids and start-stop powertrains. In the most demanding applications, IROX® & IROX2® polymer-coated bearings can help increase the life of crankshaft and bearing shells by more than five times. IROX® & IROX2® technology may also reduce friction by up to 50% compared to conventional bearings, potentially cutting CO2 emissions, improving fuel economy, and releasing more power.

Glyco Sputter Bearings® Glyco 399 & Glyco 499 can meet the extreme demands imposed by commercial vehicles engines, in terms of withstanding loads and providing long life. Dirt and geometric inaccuracies in the crankshaft may cause boundary friction, which in turn can lead to local heating and bearing damage. Thus, the bearing’s specific load withstanding capacity falls with increasing sliding speed (i.e., increasing engine rpm). Conversely, the lubricant film thickness (and with it the bearing’s load-withstanding capacity) falls with decreasing sliding speed. If the lubricant film thickness is about the same as the height of roughness peaks, mixed friction will result, and the consequent frictional heat also reduces the bearing’s load-withstanding capacity and lifetime.

Lead-free Technology

• Glyco A-370 lead-free patented material as it provides the highest performance with very high resistance to fatigue and good adaptability.
• Bearing bronze alloy CS-4, a lead-free alloy that is not compromised by impurities.

Glyco G-688® is an ‘intelligent’ lead-free bearing material which can resist high loads. It is soft and adaptable during the running-in phase, but becomes hard and fatigue-resistant throughout the rest of its lifetime. Glyco lead-free sputter technology uses a physical vapor deposition process to produce an exceptionally uniform alloy matrix on the surface of specially prepared bearings. This is the most durable bearing material known, and is ideally suited to withstand the very high loads of modern engines

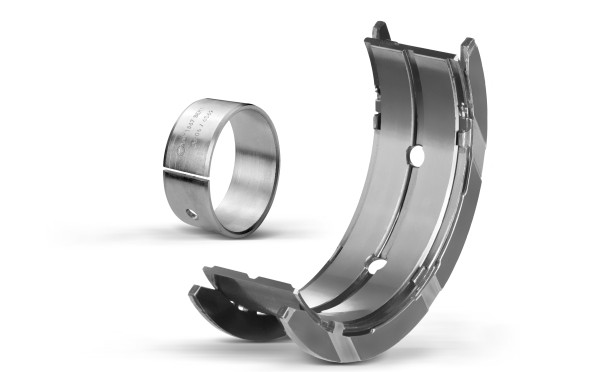

Bushings

Bushings are used in the small con rod eye, with camshafts and in some cases at the end of the crankshaft.

 Glyco - Quick look benefits

• Leaders in OE and Aftermarket for engine bearings & bushings for both Petrol and Diesel applications
• Proudly offers a comprehensive coverage in LV & CV range
• Program underpinned by cointinued strong OE presense and high-quality perception
• More than 90% of sourcing in-house. Emphasis on unique technologies and solutions.
• German OE supplier, Engineered in Wiesbaden, Germany
